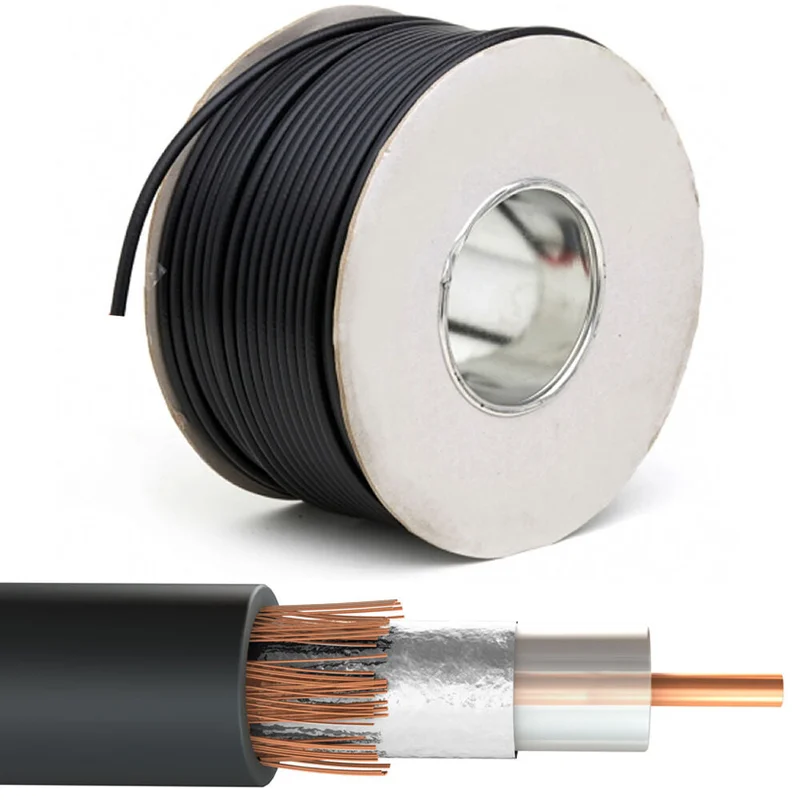

Black RG6 Coaxial Cable – 75OHM TV Aerial Satellite Freeview Wire Reel Drum

Description

Black RG6 Coaxial Cable – CCS Conductor

Perfect for satellite or aerial use. Suitable for outdoor and indoor use.

Technical Specification:

75 ohm resistance. The spacing between the centre core and shield is consistent to enable a constant 75 ohm impedance to be maintained.

Dielectric – Air spaced & 4.6mm Diameter

Conductor – Copper Clad Steel with a 1mm diameter.

Double Shielding – Aluminium Foil with a CCA braid 48 x 0.12mmØ

Outer diameter: 6.6mmØ

How to use:

When this cable is being attached to connectors, the cable should be stripped and inserted carefully ensuring a good connection is made.

We also supply a variety of connectors and wall plates that can be used with this cable, please look through our shop. If you require help, technical support can be given free of charge.

Further Information:

Capacitance 54pF/m
Attenuation @ 100MHz 6.9dB/m (±5dB)
Attenuation @ 200MHz 10.2dB/m (±5dB)
Attenuation @ 860MHz 20.3dB/m (±5dB)
Attenuation @ 1000MHz 22.5dB/m (±5dB)
Attenuation @ 2150MHz 33.6dB/m (±5dB)

Please note: 25m & 50m lengths may NOT be supplied on a reel.
